LQW15AN16NG00D - RF Inductors 16nH 2% 100MHz

Brand: Murata Electronics
Product Code: LQW15AN16NG00D
Availability: In Stock

Price: $0.3289

5 or more $0.2926
10 or more $0.2618
25 or more $0.2288
50 or more $0.1969
100 or more $0.1771

Qty: - OR - Add to Wish List
Add to Compare

Datasheets	LQW15A 00 Series (0402 Size) Chip Coils (SMD) Part Numbering

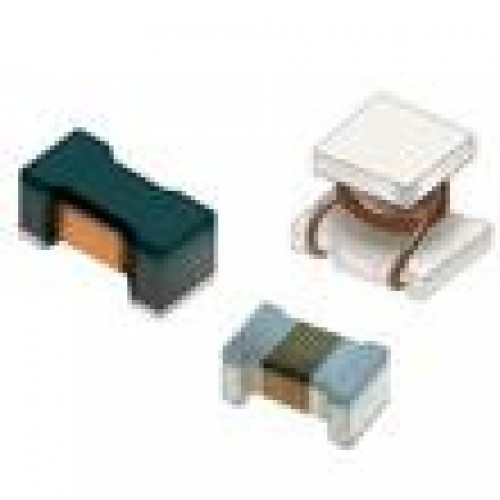

Product Photos	LQW15A Series
Product Training Modules	Inductor Products Chip RF Inductors
Catalog Drawings	LQW15A Series Front LQW15A Series Side LQW15A Series Top
Standard Package	1
Category	Inductors, Coils, Chokes
Family	Fixed Inductors
Series	LQW15A_00
Packaging	Cut Tape (CT)
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	16nH
Tolerance	±2%
Current Rating	370mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	240 mOhm Max
Q @ Freq	25 @ 250MHz
Frequency - Self Resonant	4.5GHz
Operating Temperature	-55°C ~ 125°C
Frequency - Test	100MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.024" (0.60mm)
Supplier Device Package	0402 (1005 Metric)
