ADE0404 -DIP Switches / SIP Switches SPST 4POS EXT SLIDE T/H DIP SWITCH

Brand: TE Connectivity
Product Code: ADE0404
Availability: In Stock

Price: $1.0615

5 or more $0.9988
10 or more $0.9460
25 or more $0.9086
50 or more $0.8855
100 or more $0.8833

Qty: - OR - Add to Wish List
Add to Compare

Datasheets	1825057 Drawing Switches Core Program Catalog

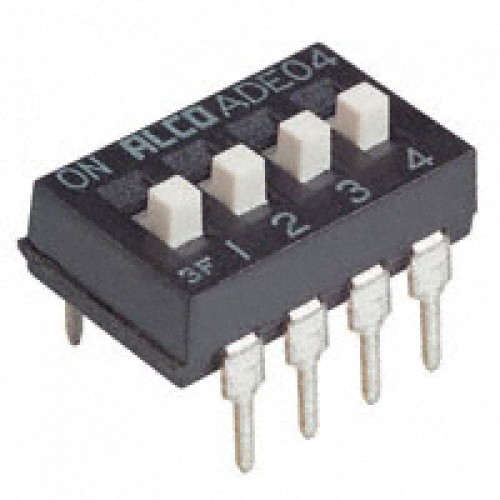

Product Photos	ADE04, ADE0404
RoHS Information	ADE0404 Statement of Compliance RoHS 2 Statement
Catalog Drawings	ADx0404
Featured Product	TE Connectivity Alcoswitch Switches Alcoswitch DIP Switches
3D Model	1825057-3.pdf
Standard Package	35
Category	Switches
Family	DIP Switches
Series	ADE
Packaging	Tube
Circuit	SPST
Number of Positions	4
Current Rating	100mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Raised
Contact Material	Copper Alloy
Contact Finish	Gold
Height Above Board	0.228" (5.80mm)
Mounting Type	Through Hole
Termination Style	PC Pin
Pitch	0.100" (2.54mm), Full
Washable	Yes
Features	-
Body Material	Polyphenylene Sulfide (PPS)
Length	0.478" (12.14mm)
Operating Temperature	-30°C ~ 85°C
Mechanical Life	1,000 Cycles
