Home » Brand » Bourns,Inc. » MF-R090 - Resettable Fuses - PPTC 60v Max 40Amps Max Hold .90 Trip 1.8

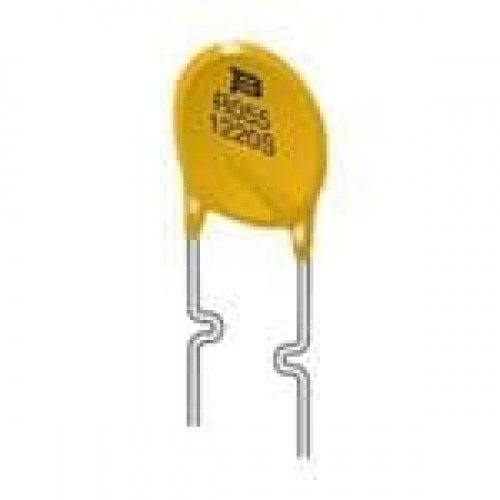

MF-R090 - Resettable Fuses - PPTC 60v Max 40Amps Max Hold .90 Trip 1.8

MF-R090 - Resettable Fuses - PPTC 60v Max 40Amps Max Hold .90 Trip 1.8
MF-R090 - Resettable Fuses - PPTC 60v Max 40Amps Max Hold .90 Trip 1.8
Brand: Bourns,Inc.
Product Code: MF-R090
Availability: In Stock
Price: $0.2422

5 or more $0.2237
10 or more $0.2061
25 or more $0.1922
50 or more $0.1916
100 or more $0.1913
Qty:     - OR -   Add to Wish List
Add to Compare
Datasheets MF-R Series
Product Training Modules Multifuse® Resettable Fuses
ESD Protection Products
Environmental Information MF-R Series Material Declaration
Mfg CAD Models MF-R090.stp
PCN Design/Specification MF Cert Mark Aug/2015
HTML Datasheet MF-R Series
Online Catalog Multifuse®, MF-R Series
Product Attributes
Type Description Select All
Categories Circuit Protection
PTC Resettable Fuses
Manufacturer Bourns Inc.
Series Multifuse®, MF-R
Packaging Bulk
Part Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 900mA
Current - Trip (It) 1.8A
Time to Trip 7.2s
Resistance - Initial (Ri) (Min) 140 mOhms
Resistance - Post Trip (R1) (Max) 470 mOhms
Operating Temperature -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.461" L x 0.122" W (11.70mm x 3.10mm)
Height - Seated (Max) 0.657" (16.70mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
