HGTG30N60A4-IGBT Transistors 600V, 75A,463W N-Channel IGBT SMPS Series

Brand: Fairchild Semiconductor
Product Code: HGTG30N60A4
Availability: In Stock

Price: $8.3474

5 or more $7.8188
10 or more $7.5494

Qty: - OR - Add to Wish List
Add to Compare

Datasheets	HGTG30N60A4

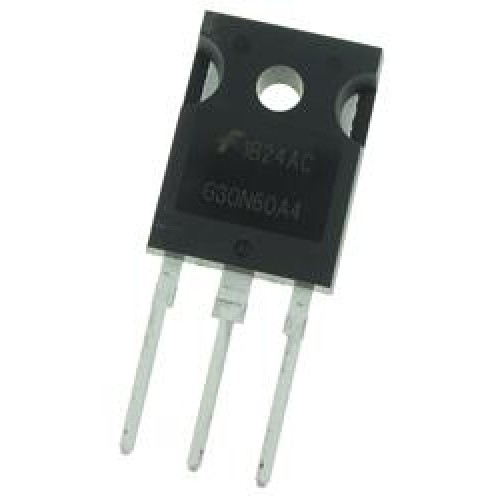

Product Photos	TO-3P-3,TO-247-3
Product Training Modules	High Voltage Switches for Power Processing
PCN Design/Specification	Plating Material 20/Dec/2007
Standard Package	30
Category	Discrete Semiconductor Products
Family	IGBTs - Single
Series	-
Packaging	Tube
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	75A
Current - Collector Pulsed (Icm)	240A
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 30A
Power - Max	463W
Switching Energy	280µJ (on), 240µJ (off)
Input Type	Standard
Gate Charge	225nC
Td (on/off) @ 25°C	25ns/150ns
Test Condition	390V, 30A, 3 Ohm, 15V
Reverse Recovery Time (trr)	-
Package / Case	TO-3P-3, SC-65-3
Mounting Type	Through Hole
