HGTG40N60A4 - GBT Transistors 600V, 75A, 625W N-Channel IGBT SMPS Series

Brand: Fairchild Semiconductor
Product Code: HGTG40N60A4
Availability: In Stock

Price: $14.4998

5 or more $13.8785
10 or more $13.4536
25 or more $13.1973

Qty: - OR - Add to Wish List
Add to Compare

Datasheets	HGTG40N60A4

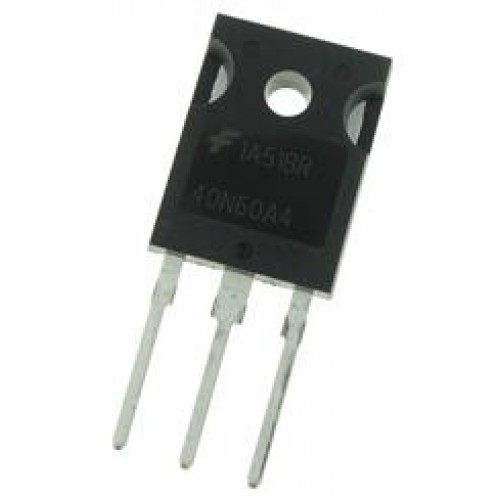

Product Photos	TO-247-3
Product Training Modules	High Voltage Switches for Power Processing
PCN Design/Specification	Plating Material 20/Dec/2007
Standard Package	30
Category	Discrete Semiconductor Products
Family	IGBTs - Single
Series	-
Packaging	Tube
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	75A
Current - Collector Pulsed (Icm)	300A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 40A
Power - Max	625W
Switching Energy	400µJ (on), 370µJ (off)
Input Type	Standard
Gate Charge	350nC
Td (on/off) @ 25°C	25ns/145ns
Test Condition	390V, 40A, 2.2 Ohm, 15V
Reverse Recovery Time (trr)	-
Package / Case	TO-247-3
Mounting Type	Through Hole
