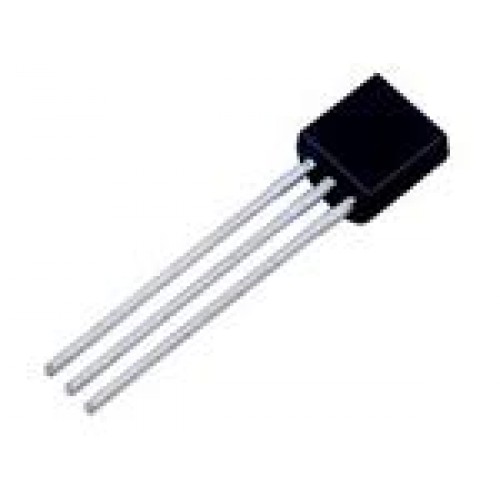

ZTX1049A- TRANSISTOR NPN 30V 4000MA TO92-3

Brand: Diodes, Inc.
Product Code: ZTX1049A
Availability: In Stock

Price: $0.9911

5 or more $0.8822
10 or more $0.7931
25 or more $0.7183
50 or more $0.6545
100 or more $0.5929

Qty: - OR - Add to Wish List
Add to Compare

Description

Manufacturer:

Diodes Incorporated

Product Category:

Bipolar Transistors - BJT

RoHS:

Brand:

Diodes Incorporated

Configuration:

Single

Transistor Polarity:

NPN

Collector- Base Voltage VCBO:

80 V

Collector- Emitter Voltage VCEO Max:

25 V

Emitter- Base Voltage VEBO:

5 V

Maximum DC Collector Current:

4 A

Gain Bandwidth Product fT:

180 MHz

Maximum Operating Temperature:

+ 150 C

Mounting Style:

Through Hole

Package / Case:

E-Line

DC Collector/Base Gain hfe Min:

250 at 10 mA at 2 V, 300 at 500 mA at 2 V, 300 at 1 A at 2 V, 200 at 4 A at 2 V, 35 at 20 A at 2 V

DC Current Gain hFE Max:

250 at 10 mA at 2 V

Maximum Power Dissipation:

1 W

Minimum Operating Temperature:

- 55 C
