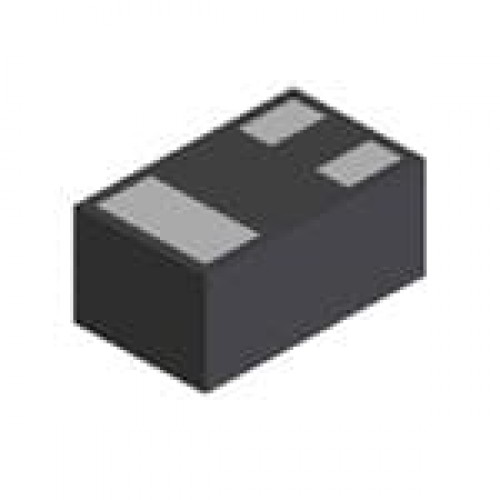

DMP58D0LFB-7-MOSFET MOSFET BVDSS: 41V-60 X1-DFN1006-3 T&R 3K

Brand: Diodes, Inc.
Product Code: DMP58D0LFB-7
Availability: In Stock

Price: $0.4873

5 or more $0.4125
10 or more $0.3487
25 or more $0.2750
50 or more $0.2189
100 or more $0.1738

Qty: - OR - Add to Wish List
Add to Compare

Description

All prices on the site are final and including VAT!

Product Category:	MOSFET
Manufacturer: DMP58D0LFB-7 Datasheet	Diodes Incorporated
RoHS:	Details
Technology:	Si
Mounting Style:	SMD/SMT
Package/Case:	X1-DFN1006-3
Number of Channels:	1 Channel
Transistor Polarity:	P-Channel
Vds - Drain-Source Breakdown Voltage:	- 50 V
Id - Continuous Drain Current:	- 180 mA
Rds On - Drain-Source Resistance:	18 mOhms
Vgs - Gate-Source Voltage:	+/- 20 V
Vgs th - Gate-Source Threshold Voltage:	- 2.1 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Packaging:	Reel
Channel Mode:	Enhancement
Brand:	Diodes Incorporated
Configuration:	1 P-Channel
Fall Time:	32.2 ns
Pd - Power Dissipation:	470 mW
Rise Time:	84.1 ns
Series:	DMP58
Factory Pack Quantity:	3000
Transistor Type:	1 P-Channel
Typical Turn-Off Delay Time:	201.8 ns
Typical Turn-On Delay Time:	30.7 ns
