SPP04N60C3XKSA1-MOSFET N-Ch 600V 4.5A TO-220FP-3

Brand: Infineon Technologies
Product Code: SPP04N60C3XKSA1
Availability: In Stock

Price: $2.1879

5 or more $1.9778
10 or more $1.8029
25 or more $1.6764
50 or more $1.5664
100 or more $1.4784

Qty: - OR - Add to Wish List
Add to Compare

Datasheets	SPP04N60C3, SPA04N60C3

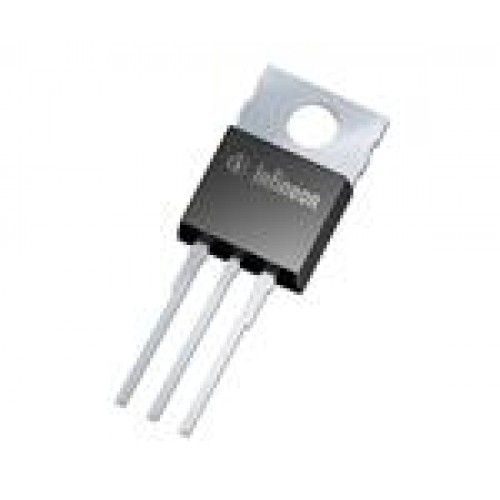

Product Photos	TO-220-3
Product Training Modules	CoolMOS™ CP Switching Behavior CoolMOS™ CP High Voltage MOSFETs Converters
Standard Package	500
Category	Discrete Semiconductor Products
Family	FETs - Single
Series	CoolMOS™
Packaging	Tube
FET Type	MOSFET N-Channel, Metal Oxide
FET Feature	Standard
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	4.5A (Tc)
Rds On (Max) @ Id, Vgs	950 mOhm @ 2.8A, 10V
Vgs(th) (Max) @ Id	3.9V @ 200µA
Gate Charge (Qg) @ Vgs	25nC @ 10V
Input Capacitance (Ciss) @ Vds	490pF @ 25V
Power - Max	50W
Mounting Type	Surface Mount
Package / Case	TO-220-3 Isolated Tab
