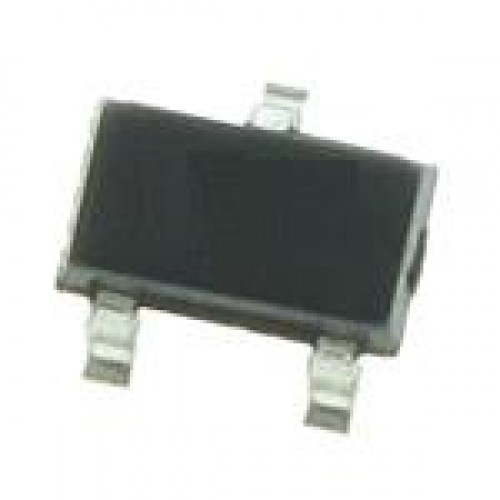

IRLML5103TRPBF-MOSFET MOSFT P-Ch -0.61A 600mOhm 3.4nC LogLvl

Brand: Infineon Technologies
Product Code: IRLML5103TRPBF
Availability: In Stock

Price: $0.5489

5 or more $0.4785
10 or more $0.4103
25 or more $0.3410
50 or more $0.2739
100 or more $0.2068

Qty: - OR - Add to Wish List
Add to Compare

Datasheets	IRLML5103PbF
Other Related Documents	Part Number Guide
Product Training Modules	High Voltage Integrated Circuits (HVIC Gate Drivers) Discrete Power MOSFETs 40V and Below
Design Resources	IRLML5103TR Saber Model IRLML5103TR Spice Model
Featured Product	Data Processing Systems
PCN Assembly/Origin	Assembly Site Addition 13/Mar/2015
PCN Packaging	Package Drawing Update 19/Aug/2015 Packing Material Update 16/Sep/2016 Barcode Label Update 24/Feb/2017
EDA / CAD Models	Download from Ultra Librarian
Online Catalog	P-Channel MOSFET (Metal Oxide)

Specifications

	Select All
Categories	Discrete Semiconductor Products
Categories	Transistors - FETs, MOSFETs - Single
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	760mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	75pF @ 25V
Vgs (Max)	±20V
FET Feature	-
Power Dissipation (Max)	540mW (Ta)
Rds On (Max) @ Id, Vgs	600 mOhm @ 600mA, 10V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
