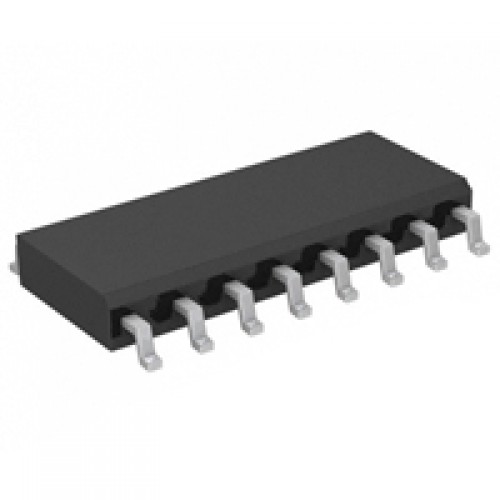

IRS2092STRPBF - Audio Amplifiers Prot DIG Audio AMP 100V 500ns 800kHz

Brand: Infineon Technologies
Product Code: IRS2092STRPBF
Availability: In Stock

Price: $3.7621

5 or more $3.4517
10 or more $3.2393
25 or more $3.0638
50 or more $2.9251
100 or more $2.8064
250 or more $2.6924

Qty: - OR - Add to Wish List
Add to Compare

Description

All prices on the site are final and including VAT!

Product Category:	Audio Amplifiers
Manufacturer: IRS2092SPBF Datasheet	Infineon
RoHS:	Details
Product:	Audio Amplifiers
Class:	Class-D
Output Power:	500 W
Mounting Style:	SMD/SMT
Type:	1-Channel Mono
Package/Case:	SOIC-16
THD plus Noise:	0.01 %
Supply Voltage - Max:	18 V
Supply Voltage - Min:	10 V
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Packaging:	Tube
Brand:	Infineon / IR
CMRR - Common Mode Rejection Ratio:	60 dB
Description/Function:	High and Low Side
Height:	1.5 mm (Max)
Ib - Input Bias Current:	40 nA
Length:	9.98 mm (Max)
Number of Channels:	1 Channel
Operating Supply Current:	3 mA
Operating Supply Voltage:	12 V
Output Signal Type:	Digital
Pd - Power Dissipation:	1 W
PSRR - Power Supply Rejection Ratio:	65 dB
Factory Pack Quantity:	45
Vos - Input Offset Voltage:	15 mV
Width:	4 mm (Max)
Unit Weight:	666 mg
