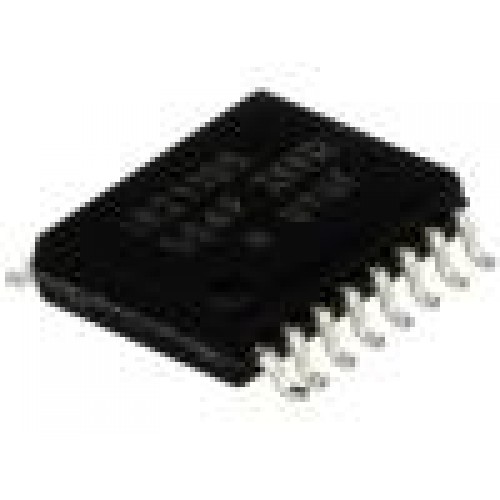

IR2110SPBF-Gate Drivers HI LO SIDE DRVR 500V 2A 10ns

Brand: Infineon Technologies
Product Code: IR2110SPBF-
Availability: In Stock

Price: $4.5321

5 or more $4.2483
10 or more $4.1439
25 or more $4.0986

Qty: - OR - Add to Wish List
Add to Compare

Description

All prices on the site are final and including VAT!

roduct Category:	Gate Drivers
Manufacturer: IR2110SPBF Datasheet	Infineon
RoHS:	Details
Mounting Style:	SMD/SMT
Package/Case:	SOIC-16
Product:	Half-Bridge Drivers
Number of Drivers:	2 Driver
Output Current:	2.5 A
Configuration:	Non-Inverting
Rise Time:	35 ns
Fall Time:	25 ns
Supply Voltage - Max:	20 V
Supply Voltage - Min:	10 V
Operating Supply Current:	340 uA
Maximum Operating Temperature:	+ 125 C
Type:	High and Low Side Driver
Packaging:	Tube
Brand:	Infineon Technologies
Features:	Independent
Height:	2.35 mm (Max)
Length:	10.5 mm (Max)
Logic Type:	CMOS, LSTTL
Maximum Turn-Off Delay Time:	94 ns
Maximum Turn-On Delay Time:	120 ns
Minimum Operating Temperature:	- 40 C
Number of Outputs:	2
Operating Supply Voltage:	10 V to 20 V
Pd - Power Dissipation:	1250 mW
