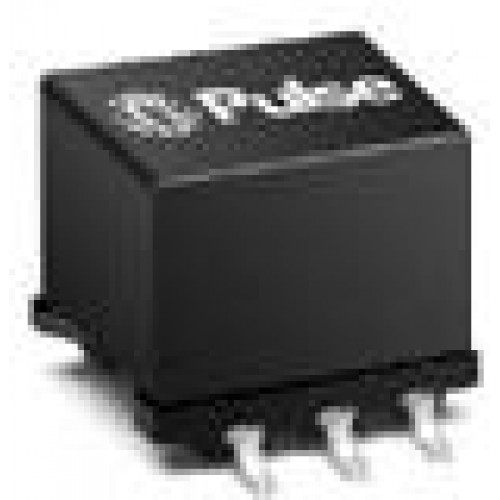

P1597NL - Transformers Audio & Signal RS 485 DC/DC PUSH-PULL XFMR

Brand: Pulse Electronics
Product Code: P1597NL
Availability: In Stock

Price: $4.1135

5 or more $3.5606
10 or more $3.1016
25 or more $2.8219
50 or more $2.6566
100 or more $2.5423

Qty:     - OR -   Add to Wish List
Add to Compare

Datasheets	P1597(NL) SMT Pwr Xfrmr
Product Photos	P1597NL
Catalog Drawings	P1597NL Schematic A
Standard Package	80
Category	Transformers
Family	Switching Converter, SMPS Transformers
Series	-
Packaging	Tube
Type	For DC/DC Converters
Applications	Isolated Transceivers
Intended Chipset	LTC1535
Voltage - Primary	-
Voltage - Auxillary	-
Voltage - Isolation	2000Vrms
Frequency	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Size / Dimension	8.60mm L x 13.00mm W
Height - Seated (Max)	9.00mm
