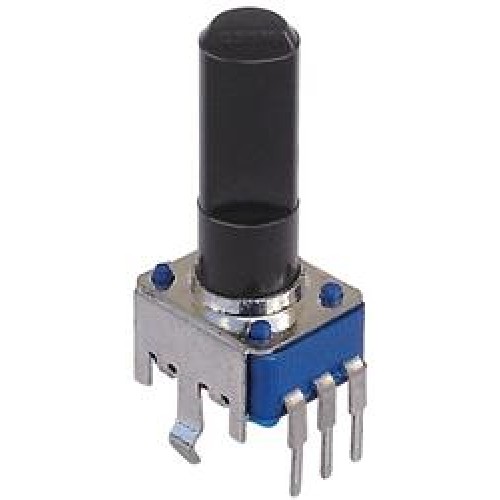

PTV09A-4025F-A103-Potentiometers PANEL CONTROL 9MM-ST-CARBON

Brand: Bourns,Inc.
Product Code: PTV09A-4025F-A103
Availability: In Stock

Price: $1.0943

5 or more $1.0186
10 or more $0.9509
25 or more $0.9078
50 or more $0.8764

Qty: - OR - Add to Wish List
Add to Compare

Description

All prices on the site are final and including VAT!

Product Category: PTV09A-4025F-A103 Datasheet	Potentiometers
Manufacturer:	Bourns
RoHS:	Details
Product:	Potentiometer
Number of Gangs:	1 Gang
Resistance:	10 kOhms
Taper:	Log
Mounting Style:	PCB Mount
Power Rating:	50 mW
Voltage Rating:	20 VDC, 50 VAC
Tolerance:	20 %
Termination Style:	Through Hole
Element Type:	Carbon
Number of Turns:	1 Turn
Shaft Type:	Flatted
Type:	Rotary Insulated
Switch Type:	No Switch
Number of Detents:	Without Detent
Shaft Diameter:	6 mm
Shaft Length:	25 mm
Life:	10,000 Cycles
IP Rating:	-
Series:	PTV09
Brand:	Bourns
Diameter:	-
Features:	Carbon element, Insulated shaft, Wide variety of mounting styles, Center detent option
Height:	28.8 mm
Length:	11.4 mm
Maximum Operating Temperature:	+ 50 C
Minimum Operating Temperature:	- 10 C
Operating Temperature Range:	- 10 C to + 50 C
Factory Pack Quantity:	100
Temperature Coefficient:	-
Thread Size:	-
Tradename:	Pro Audio
