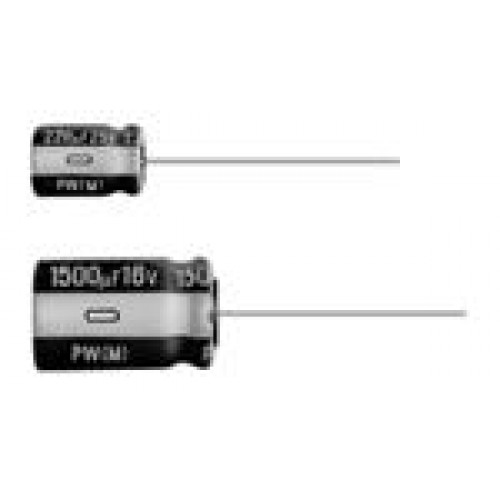

UPW1V101MPD1TD-Aluminum Electrolytic Capacitors - Leaded 35volts 100uF 105c

UPW1V101MPD1TD-Aluminum Electrolytic Capacitors - Leaded 35volts 100uF 105c
UPW1V101MPD1TD-Aluminum Electrolytic Capacitors - Leaded 35volts 100uF 105c
Brand: Nichicon
Product Code: UPW1V101MPD1TD
Availability: In Stock
Price: $0.4377

5 or more $0.3882
10 or more $0.3434
25 or more $0.3011
50 or more $0.2616
100 or more $0.2384
Qty:     - OR -   Add to Wish List
Add to Compare
Manufacturer: Nichicon PDF Data Sheet
Product Category: Aluminum Electrolytic Capacitors - Leaded
RoHS: RoHS Compliant Details
Brand: Nichicon
Termination Style: Radial
Capacitance: 100 uF
Voltage Rating DC: 35 V
Tolerance: 20 %
Ripple Current: 555 mA
Maximum Operating Temperature: + 105 C
Load Life: 3000 Hour
Case Diameter: 8 mm
Case Length: 11.5 mm
Lead Spacing: 3.5 mm
Product: Low Impedance Electrolytic Capacitors
Dimensions: 8 mm Dia. x 11.5 mm L
Dissipation Factor DF: 0.12
Leakage Current: 105 uA
Packaging: Bulk
Series: PW
