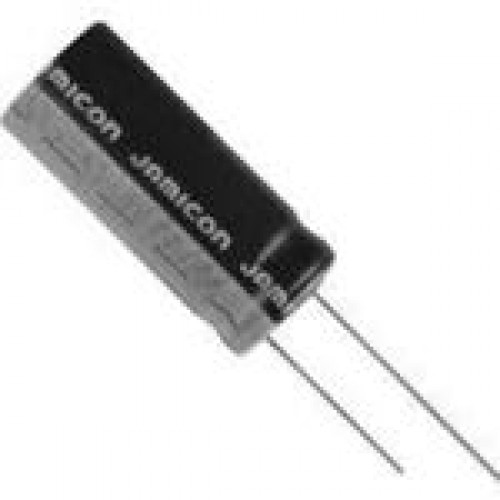

TKR101M2EK32-Cap Aluminum Lytic 100uF 250V 20% (16 X 31.5mm) Radial 7.5mm 440mA 2000h 105°C

TKR101M2EK32-Cap Aluminum Lytic 100uF 250V 20% (16 X 31.5mm) Radial 7.5mm 440mA 2000h 105°C
TKR101M2EK32-Cap Aluminum Lytic 100uF 250V 20% (16 X 31.5mm) Radial 7.5mm 440mA 2000h 105°C
Brand: JAMICON
Product Code: TKR101M2EK32
Availability: In Stock
Price: $0.5498

5 or more $0.4998
10 or more $0.4628
25 or more $0.4325
Qty:     - OR -   Add to Wish List
Add to Compare
ype
Electrolytic
Type describes the type of the component.
  • Capacitance Value
    100uF
    Capacitance Value is a measure of a capacitor's ability to store charge, measured in farads F unit.
  • Tolerance
    20%
    Tolerance describes the deviation from nominal value in percent.
  • Voltage
    250VDC
    Voltage is a quantitative expression of the potential difference in charge between two points in an electrical field.
  • IR (mA)
    440
    Ripple Current describes the total amount of alternating and direct current that may be applied to an electrolytic capacitor under stated conditions.
  • IL (uA)
    790@3Min
    Leakage Current describes the current flowing from one conductor to an adjacent conductor through an insulating layer.
  • Lifetime (h)
    2000
    Lifetime describes the period of time during which device is alive.
  • Polarity
    Polar
    Polarity describes the notation used in the assignment of voltages or the direction in which current tends to flow.
  • Construction
    Aluminum Cylindrical Can
    Construction describes the shape or construction of device.
  • Mounting
    Through Hole
    Mounting indicates the method of mounting the device.
  • Termination Style
    Radial
    Termination Style describes the shape of pins, leads, terminals or connectors to show the way of its termination to a wire or PCB.
  • Number of Terminals
    2
    Number of Terminals describes number of package pins or device leads.
  • Terminal Pitch (mm)
    7.5
    Terminal Pitch describes the distance between circuits (positions) measured from center-to-center of adjacent conductors in the same row and from board direction.
  • Wire Form
    Long Lead
    Wire Form describes the wire shape of lead.
  • Size (mm)
    16 X 31.5
    Size describes the wire size or collection of dimensions.
  • Minimum Operating Temperature (°C)
    -40
    Minimum Operating Temperature describes the minimum temperature that the device can function correctly while working.
  • Maximum Operating Temperature (°C)
    105
    Maximum Operating Temperature describes the maximum temperature that the device can function correctly while working.
  • Product Diameter (mm)
    16
    Product Diameter describes The device diameter.
  • Product Height (mm)
    31.5
    Product Height describes the overall product height in the height direction.
  • Lead Diameter (mm)
    0.8
    Lead Diameter describes the diameter of leads for through hole mounting device.
