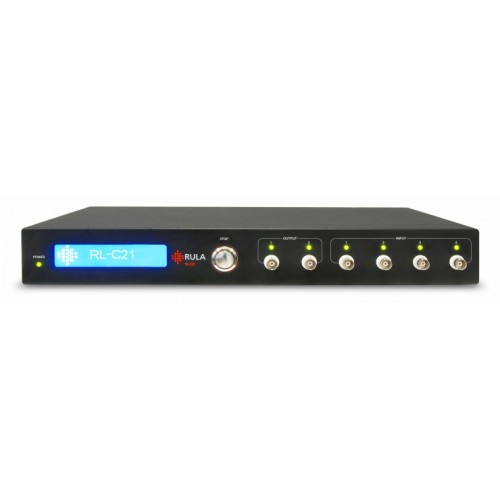

RL-C21 vibration control and data acquisition system

RL-C21 vibration control and data acquisition system
RL-C21 vibration control and data acquisition system
Brand: RULA
Product Code: RL-C21
Availability: In Stock
Price: $21,152.0000
Qty:     - OR -   Add to Wish List
Add to Compare

RL-C21-4
 4 inputs
 2 outputs
 LCD
 Frequency range: 10 KHz
 ADC resolution: 24 bits
 Sensor type (inputs): IEPE, displacement,
TEDS, velocity, force sensors, charge
 Spectrum lines: 800 to 52500
 Sample rate: 1290 – 108 kHz
 Filtration (inputs, outputs): analog, digital
high-pass and low-pass filters
 Temperature range: +5 ÷ +50 °C
RL-A200
 Output power: 200 VA
 Frequency range, output: 22 KHz
 Dynamic range, input, dB: ≥ 110
 Maximum output voltage: 30 V
 Maximum output current: 10 A
 THD: ≤ 0.1 %
RL-B01 - Sine Control (frequency up to 4999 Hz)
RL-B01-35 - High frequency option for Sine (requires RL-B01, 35 kHz)
RL-B013 - Displacement and velocity control (requires RLB01
RL-B02 - Random Control (frequency up to 4999 Hz)
RL-B02- High frequency option for Random (requires RL-B02, 35 kHz)
RL-B17 Accelerometer and Microphone Calibration
