DS1338Z-33+ -Real Time Clock I2C Serial RTC w/56 Byte NV RAM

Brand: Maxim Integrated
Product Code: DS1338Z-33+
Availability: In Stock

Price: $3.9479

5 or more $3.7367
10 or more $3.6465
25 or more $3.5585
50 or more $3.3836
100 or more $3.2296

Qty: - OR - Add to Wish List
Add to Compare

Datasheets	DS1338

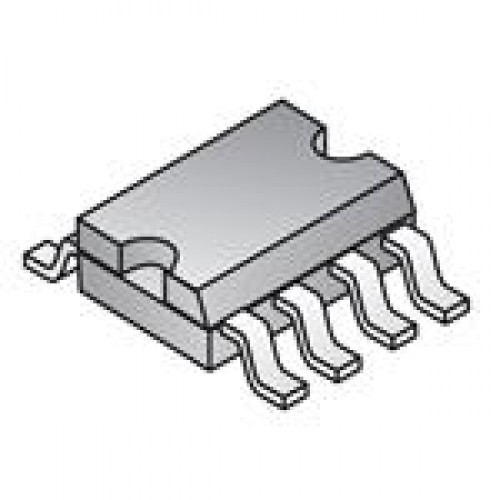

Product Photos	8-SOIC
Mfg Application Notes	Crystal Considerations with Maxim Real-Time Clocks (RTCs) Design Considerations for Maxim Real-Time Clocks Lithium Coin-Cell Batteries: Predicting an Application Lifetime Using the DS32kHz with Maxim Real-Time Clocks FAQ About the Integrated-Crystal Package Option Selecting a Backup Source for Real-Time Clocks Oscillator Design Considerations for Low-Current Applications State Machine Logic in Binary-Coded Decimal (BCD)-Formatted Real-Time Clocks
Product Training Modules	Lead (SnPb) Finish for COTS Long-Term Supply Program DS1307 Real Time Clocks
Standard Package	100
Category	Integrated Circuits (ICs)
Family	Clock/Timing - Real Time Clocks
Series	-
Packaging	Tube
Type	Clock/Calendar
Features	Leap Year, NVSRAM, Square Wave Output
Memory Size	56B
Time Format	HH:MM:SS (12/24 hr)
Date Format	YY-MM-DD-dd
Interface	I²C, 2-Wire Serial
Voltage - Supply	3 V ~ 5.5 V
Voltage - Supply, Battery	1.3 V ~ 3.7 V
Current - Timekeeping (Max)	125µA ~ 200µA @ 3.63V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
